Quick Details

  • Light Source: LED
  • LED Light Source: epileds
  • Type: Ground Row Lights
  • Input Voltage(V): 90-250
  • Lamp Power(W): 180
  • Lamp Luminous Flux(lm): 220
  • Lamp Luminous Efficiency(lm/w): 110
  • CRI (Ra>): 85
  • Color Temperature(CCT): rgbwap
  • Working Temperature(℃): -15 - 45
  • Working Lifetime(Hour): 50000
  • IP Rating: IP65
  • Certification: CE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: grace
  • Model Number: GL-S96
  • Emitting Color: RGBWA+UV

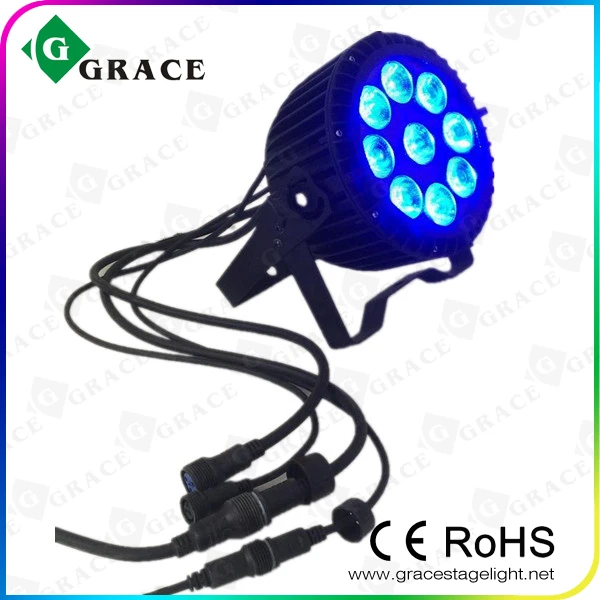

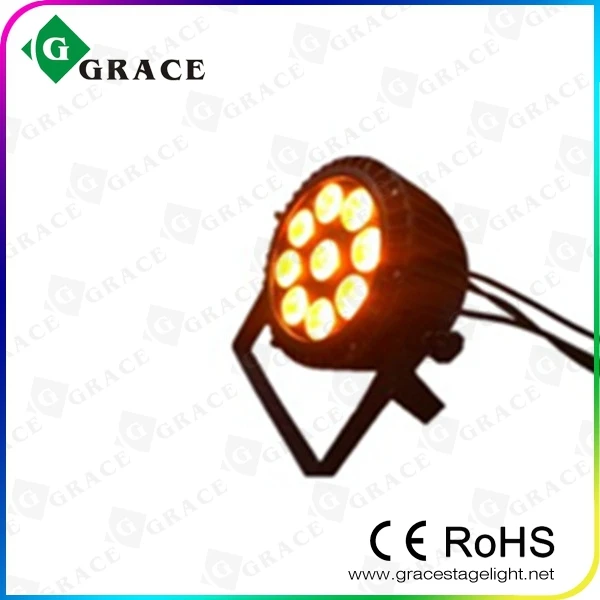

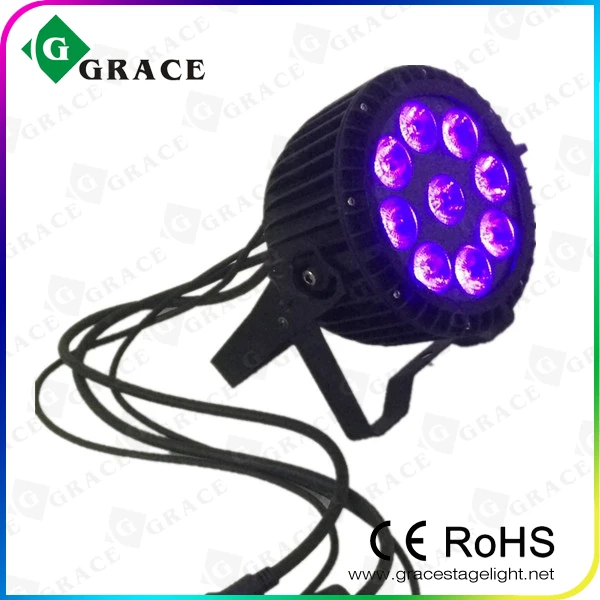

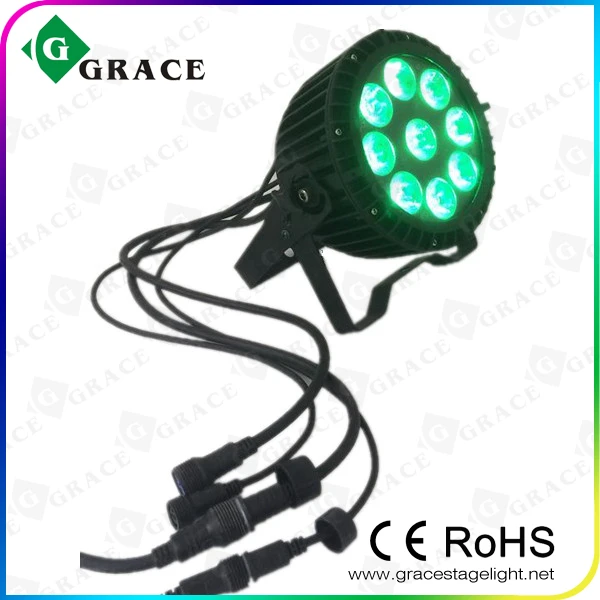

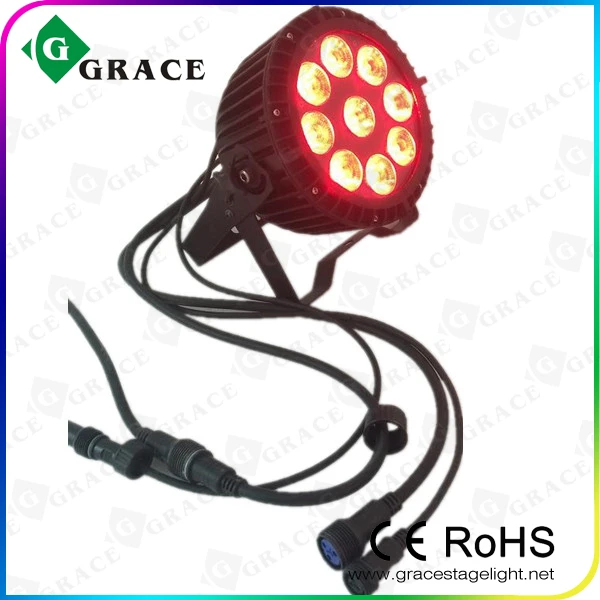

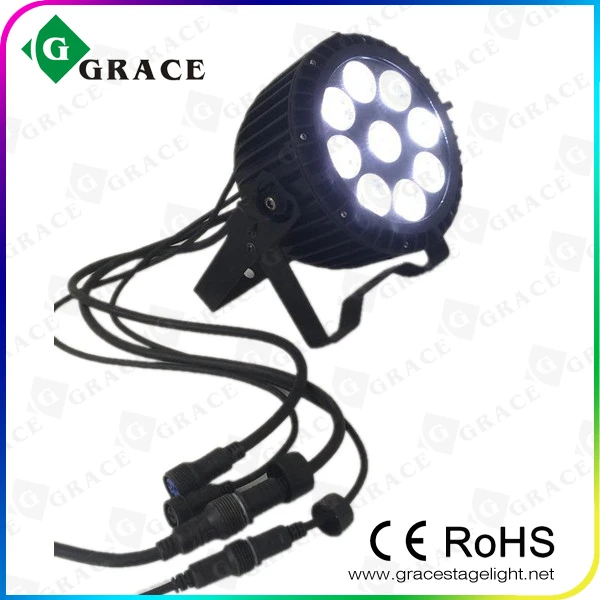

  • name: 9*18W rgbwa+uv led par 6in1
  • qty of led: 9x15W 6in1(RGBAW+UV) LEDs
  • colors of led: red ,green ,blue,white,amber and UV (purple) colors
  • 2 channels modes of IP65 led par light: 6 channels and 10 channels
  • waterproof rage: IP65 ,waterproof dmx in & out cable,power cable in and out
  • body material: die-cast aluminum body
  • control modes: Sound control, Auto mode, Master/slave and DMX512
  • quite light weight: only 6.5kgs gross weight IP65 led par light
  • voltage: AC90-250v,50-60hz
  • lense: 25 degree lense for best mixing color effect,and big lense

Packaging & Delivery

Packaging Details export carton packing
packing size:530x530x360mm/4pcs

9*18W rgbwa+uv led par 6in1







Name

9*15w slim outdoor RGBWAUV (RGBWAP) 6in1 led par light

Lense

25 degree best mixing color effect

Quantity of LED's

9pcs brightness 15watt led

Input Voltage

AC 90-240V/50-60Hz

Power

135w

Control Signal

Sound control, Auto mode, Master/slave and DMX512

Body

die-cast aluminum body

Channel

6/10ch

Colors

RGBWA+UV  color mixture

IP rate

ip65

Net Weight

3.5kg

Gross Weight

4.5kg



DMX512    10 channels

No.

function

notes

CH1

General dimmer

RGBWAP dimmer,linear,from dark to bright

CH2

General strobe

RGBWAP  strobe ,from slow to fast



CH3



Function select

0--50:DMX ;51--100:jump;101--150:fade;151--200:pulse;201--255:sound control

CH4

Function speed

Function speed from slow to fast

CH5

Red dimmer

Red dimmer,linear,from dark to bright

CH6

Green dimmer

Green dimmer,linear,from dark to bright

CH7

Blue dimmer

Blue dimmer,linear,from dark to bright

CH8

White dimmer

white dimmer,linear,from dark to bright

CH9

Amber dimmer

Amber dimmer,linear,from dark to bright

CH10

Purple dimmer

Purple dimmer,linear,from dark to bright



DMX512    6 channels

no.

display

function

CH1

Red dimmer

Red dimmer,linear,from dark to bright

CH2

Green dimmer

Green dimmer,linear.from dark to bright

CH3

Blue dimmer

Blue dimmer,linear,from dark to bright

CH4

White dimmer

white dimmer,linear,from dark to bright

CH5

Amber dimmer

Amber dimmer,linear,from dark to bright

CH6

Purple dimmer

Purple dimmer,linear,from dark to bright





Packing for the goods

1.Using EPE packing the goods in case damage

2.Then put it into the Standard carton

3. Flight case optional



Price term

EXW price/FOB price

Sampletime

1-3 business days

Production

time

3-20 days, depend on order quantity

Warranty

one year for indoor lighs,two years for outdoor lights








Company Information



Estabilshed in 2009, Grace Stage Lighting is one of professional manufacturer of LED lighting in Guangzhou.Our main product are LED stage lighting,LED moving head lighting,LED par light ,LED wall washer lighting,LED spot lighting



other quantity of leds can be made



we ship goods as following way

we accept these payment way

contact us free for any inquiry or interest
